- Plastic monomer structure
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperature resistance without deformation
Product specificationsupport Sensor：CMOS Sensor
Drive way：Impulse type
Product material：PC+GF
driving voltage：5V
Matching resistance：15Ω-40Ω
Drive time：250ms-450ms
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Life test：5WAt a time
Visible window：7.9mm*7.9mm
Screw hole distance：18.24mm
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:35.1mm*22.08mm*4.2mm

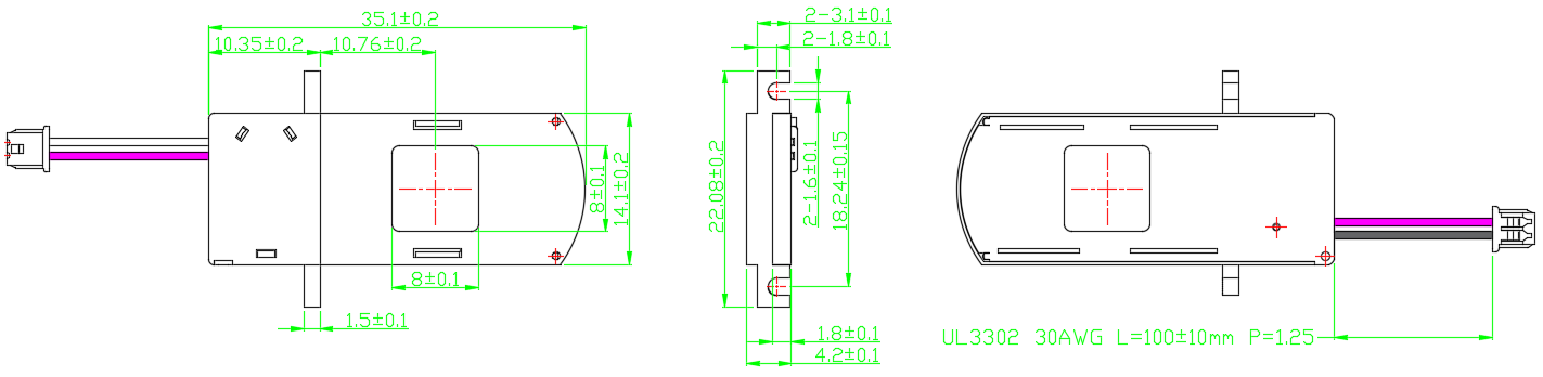

Overall dimension
